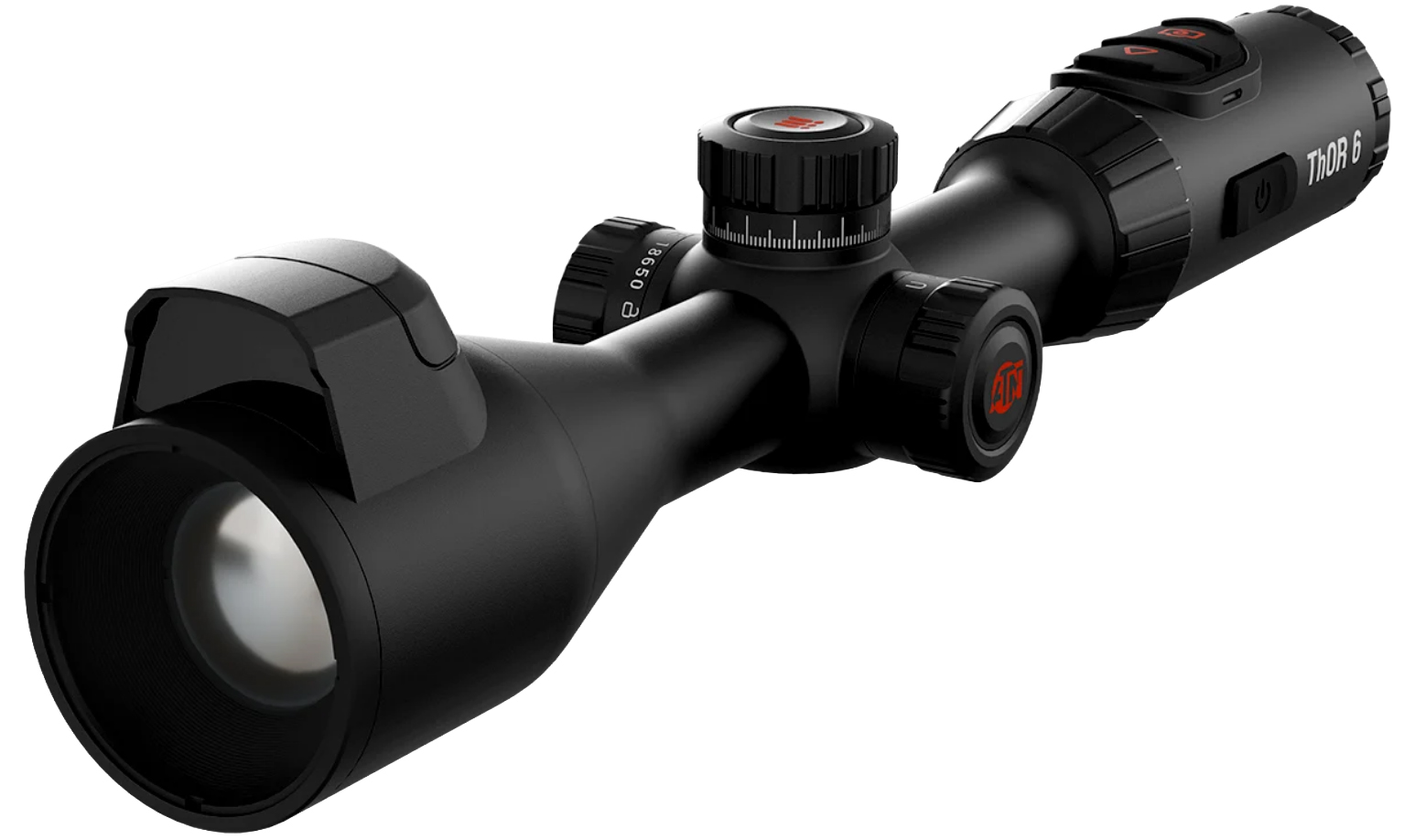

ATN THOR 6 ELITE THERMAL 2-16X 640X512 LRF

The heart of the ThOR 6 lies in its advanced thermal sensors designed for unmatched sensitivity and precision. The 640×512 resolution sensor features 15mK ultra-sensitive NETD built on a 12um pixel pitch for exceptional clarity. This sensor captures the faintest heat signatures allowing you to detect hidden targets through dense brush total darkness or foggy mornings. Whether you’re scanning open terrain for coyotes or tracking hogs through heavy cover this breakthrough in sensitivity delivers sharper detail faster detection and the confidence to perform in any environment. – Detector Type 12um VOx Uncooled Focal Plane Array – Sensor Resolution 640×512 – Refresh Rate 50 Hz – Thermal Sensitivity (NETD) 15mK – SharpIR© Yes – Non-Uniformity Correction (NUC) Auto / Semi Auto / Manual – Lens System 35 mm (Ge); F/1.0 – Field of View (H×V) 12.52° × 9.41° – Focus Mechanism Manual Central Knob Control – Magnification 2-16× – Digital Zoom 1× 2× 4× 8× – Zoom Type Step & Smooth Zoom – Detection Range 3100 m – Display Resolution 0.49 OLED 1920×1080 Resolution – Eye Relief 50 mm – Diopter Range -5 to +5 D – Picture-in-Picture (PIP) Yes – Reticle Types 10 Styles – Reticle Transparency Control Yes – Zeroing Freeze Yes – Color Palettes White Hot Black Hot Iron Red Alarm Green Hot Sepia – Battery Type 1 × 18650 (Internal) & 1 × 18650 Rechargeable (Replaceable) – Battery Life ~9 hrs – Supports External Power Supply Yes USB Type-C (5 VDC / 2A) – Standby / Sleep Mode Yes – Startup Time <7 seconds (instant from Standby) – Internal Storage Capacity 64 GB – Video / Audio Recording Yes – Internal Gallery Yes – Recoil Activated Video (RAV) Yes – Media Output USB Type-C – Built-in Wi-Fi (Hotspot) Yes – App (Apple Store / Google Play) Yes (ATN Connect 6 iOS & Android) – Built-in Laser Rangefinder (LRF) Yes – LRF Range 1000 m – LRF Accuracy ±1 m – LRF Laser Specs 905 nm Class 1 (Eye Safe) – Ballistic Calculator Yes – Hot Point Tracking Yes – Geomagnetic + Gyroscope Yes – Material Magnesium Alloy – Mounting 30 mm Rings (not included) – Weight 855 g / 1.89 lbs – Dimensions (L x W x H) 430×85×80 mm (16.93×3.35×3.15 in) – Max Recoil Rating 6000 Joules / 1000g acceleration over 0.4 ms – Operating Temperature -30°C to 55°C (-22°F to 131°F) – Waterproof / IP Rating IP67 – Warranty 5 Year
